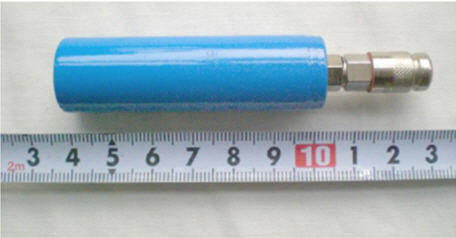

MH5 Metal Hydride Tank
Product code: 0506000031

Specifications:

Dimensions(not including valve)

Ф18 × L62mm

Gross Weight

Approx. 75g

Storage Capacity

5NL (standard liter)

Vessel material

stainless steel

Connector

Quick coupling with Ф4 tube

Charging pressure

1.2 - 1.5 MPa

Discharge Pressure

0.2 MPa （20°C）

Flow Rate

0.1NL/min (RT- 25°C)

Heat supply

Not necessary



Benefits:

* SAFE--Hydrogen is stored in solid state
* HIGH STORAGE DENSITY--Higher than Liquified Hydrogen in term of volume
* PURITY--released hydrogen exceeds 5Nl
* CYCLE LIFE--more than 2000 cycles (guaranteed)

Applications (Frequent Use in):

* Micro Fuel Cell Systems
* Fuel Cell Education Kits
* Portable Hydrogen Storage
* Instrument Hydrogen Supply

* Minimum order: 10 pieces

(Price for 10 pieces)
Price: 1900.00 SGD Qty:
