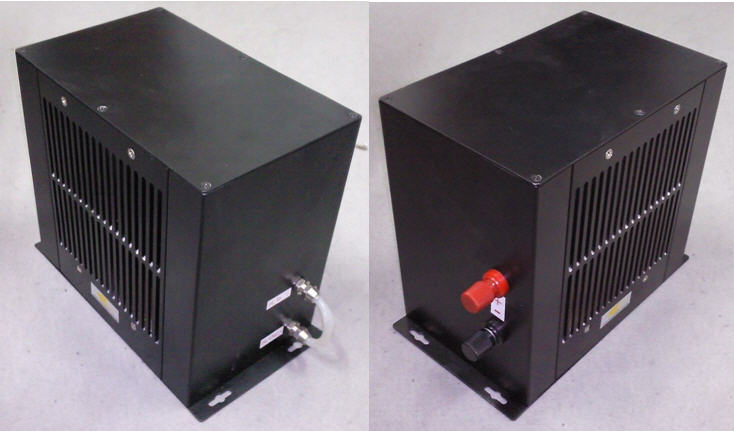

Electronic Controlled Air/Hydrogen PEM Fuel Cell System, 500 Watts
Product
code:
 |
|
500W Electronic Controlled Air/Hydrogen (compact designed) fuel cell system is a highly integrated fuel cell system that includes: fuel cell stack, fans, IC board and electromagnetic valve. 500W is a suitable power for the mobile applications, for instance PC, scooter and portable power generator.
Products characters:
- Light weight and small size;
- Low noise；
- Simple system and high reliability;
- Quick startup, good dynamic performance;
- Excellent environment adaptability;
- Simple control and communication policy;
- No external power supply is required for initial system startup and fan.
Specifications
| Type |
Based on Pearls' PASH Technology |
| Performance |
Rated Power: |
500 Watt* |
| |
Rated Voltage: |
19.2 Vdc |
| |
Rated Current: |
26 A |
| |
DC Voltage Range: |
15 ~ 29 Vdc |
| |
Efficiency: |
≥50% |
| Fuel |
Pure Hydrogen Gas: |
≥99.95% |
| |
Pressure: |
0.5 ~ 0.6 bar |
| |
Hydrogen Consumption: |
6.1 L/min @ rated power |
| Oxidant / Coolant |
Air |
| |
Pressure: |
Ambient Pressure |
| Stack Physical Charateristics |
Mass: |
2800 grams |
| |
Length x Width x Height: |
176mm x 173mm x 115mm |
| Operating Conditions |
Environment Temperature: |
-5° ~ 40°C |
| |
Relative Humidity: |
20 ~ 95% |
* Value determined at the ambient temperature range 15° ~ 35°C and the RH% from 30 ~ 90%. |
|
|
|
|
